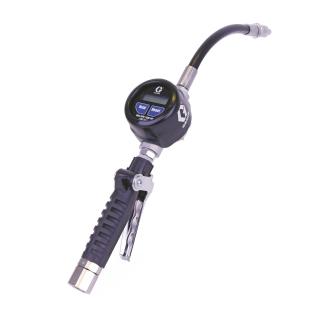

Graco EM8 Electronic Manual Oil/Antifreeze Meter, 1/2" Flex Ext

MFRPART#:	25C904
SMITHTOOL#:	GC-25C904
Weight:	8.00 lbs

Ask a question about this product

Only $789.40

Details

Graco 25C904

EM8 Electronic Manual Oil/Antifreeze Meter

EM Series handheld and in-line meters are designed to last – from small service centers and lubrication trucks to heavy-duty repair facilities. Choose from 8 or 20 gpm (30.3 to 75.7 lpm) hand-held models or our 20 gpm (75.7 lpm) in-line meter. Graco’s EM Series meters are backed by our robust warranty and feature upgraded electronics and easy-to-read LCD with simple operator controls that measures in quarts, gallons, pints and liters.

Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.
High-Flow Rates - Capable of up to 8 gpm (30.3 lpm).
Legacy Valve - 1/2 inch (13 mm) inlet, compatible with oil and Antifreeze.
Prevent Accidental Dispenses - Easy-to-hold locking handle.
Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.
Long Battery Life - Features upgraded electronics and easily replaceable AAA batteries.

Click here to download product manual

Approvals	CE
Calibration Type	Factory Calibrated
Compatible Material	Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze
Construction	Aluminum, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast®
Display Type	Electronic
Extension Type	Flexible
Fluid Inlet Thread Gender	Female
Fluid Outlet Thread Gender	Female
IP Rating	69K
Includes	Nozzle, Extension
Inlet Size (in)	1/2
Inlet Thread Type	NPT
Maximum Flow Rate (GPM)	8
Maximum Operating Temperature (°F)	180
Maximum Recorded Dispense	19999
Maximum Storage Temperature (°F)	185
Maximum Totalizer	19999
Maximum Working Pressure (MPa)	10.2
Maximum Working Pressure (psi)	1500
Meter Accuracy (%)	±0.5
Meter Pressure Loss (psi)	30 PSI at 6 GPM
Meter Technology	Oval Gear
Metering Gun Weight (lb)	3
Minimum Flow Rate (GPM)	0.25
Minimum Operating Temperature (°F)	-22
Model	EM8
Nozzle Type	Manual
Outlet Size (in)	3/4
Outlet Thread Type	ORB
Overall Height (in)	5.25
Overall Length (in)	13
Overall Width (in)	3.5
Recommended Environment	Indoor/Outdoor
Series	A
Trigger Lock	Locking
Trigger Protection Type	Lock Off Button
Type	Electronic Metered Dispense Valve
Unit of Measure	Quart, Pint, Liter, Gallon
Valve Type	Metered
Warranty	5 Years
