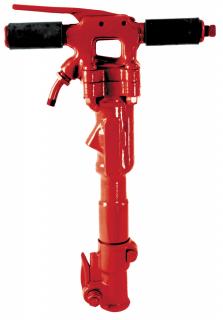

ATP-17-1

Paving Breaker, 30lb Class, 1 x 4-1/4 Chuck

Features and Benefits:

• Alloy steel forgings
• Rugged 4 bolt design
• Internal oiler for long service life
• Swivel air inlet for operator comfort
• Precision USA machined parts for long life

Specifications:

• Bore in: 1-3/4
• Bore mm: 44
• Stroke - in: 3-3/8
• Stroke mm: 86.0
• Blows Per min: 1550
• Chuck Size in: 1 x 4-1/4
• Handle Type: T Handle
• Throttle Type: Top Lever
• Retainer Type: Latch
• Overall Length - in: 22.5
• Overall Length - mm: 572
• Net Weight lb: 32
• Net Weight kg: 14.50
• Hose Size ID in: 3/8
• Hose Size ID mm: 10
• Air Swivel Inlet Male NPT in: 3/8
• Housing: Alloy Steel Forging
• Backhead: 4 Bolt Design
• Performance Pressure PSIG: 90
• Performance Pressure: 6.2
• Air Consumption cfm: 46
• Air Consumption l/min: 1303
